BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

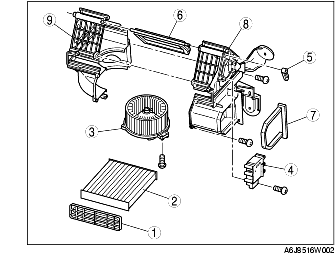

1. Disassemble in the order indicated in the table.

Caution
• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1
Air filter cover
2
Air filter
3
Blower motor
4
Air intake actuator
5
Air intake crank
6
Air intake door
7
Polyurethane protector
8
Blower case (1)
9
Blower case (2)

2. Assemble in the reverse order of disassembly.
