REAR HEAT DUCT REMOVAL/INSTALLATION


id071100800900

1. Turn over the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION.)

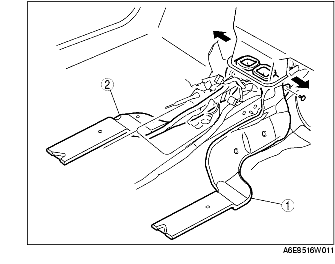

2. Remove in the order indicated in the table.

1
Rear heat duct (Right)
2
Rear heat duct (Left)

3. Install in the reverse order of removal.
