CLIMATE CONTROL UNIT CONSTRUCTION

id074000100900

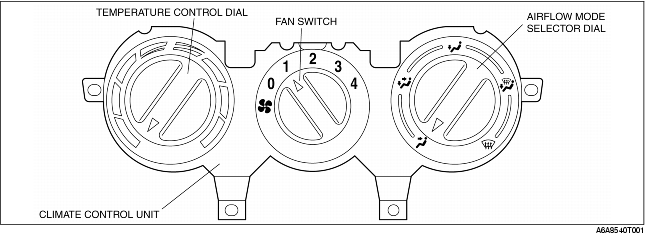

Manual Air Conditioner

• A wire-type climate control unit is used with the manual air conditioner.

• The airflow mode selector dial, temperature control dial, fan switch have been enlarged to improve ease of operation.

• The A/C, REC/FRESH and rear window defroster switches equipped in the current climate control unit have been relocated to the center panel.

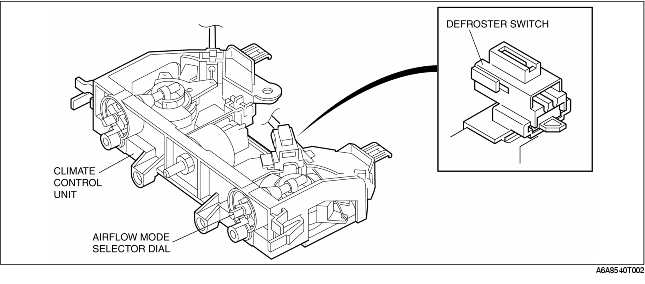

• A defroster switch into the climate control unit detects when the airflow mode selector dial is turned to DEFROSTER position. When the defroster switch turned on, the center panel starts defroster control. (See Defroster Control.)

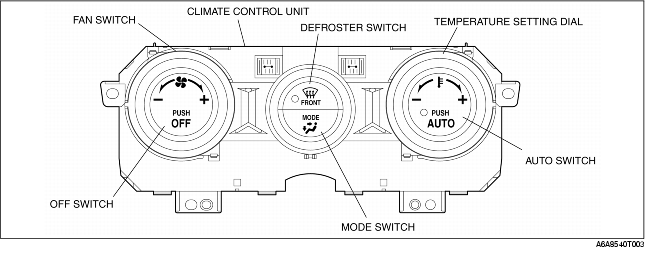

Full-auto Air Conditioner

• A logic-type climate control unit is used with the full-auto air conditioner.

• The airflow mode switch, temperature setting dial, fan switch have been enlarged to improve ease of operation.

• The A/C, REC/FRESH and rear defroster switches equipped in the current climate control unit have been relocated to the center panel.

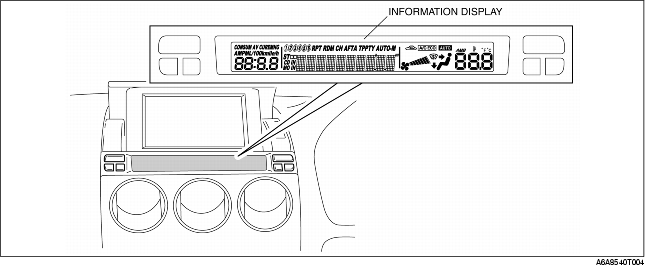

• Information about the operating condition of the system is displayed on the information display.
