CONTROL SYSTEM BLOCK DIAGRAM [FULL-AUTO AIR CONDITIONER]

id0740003513a1

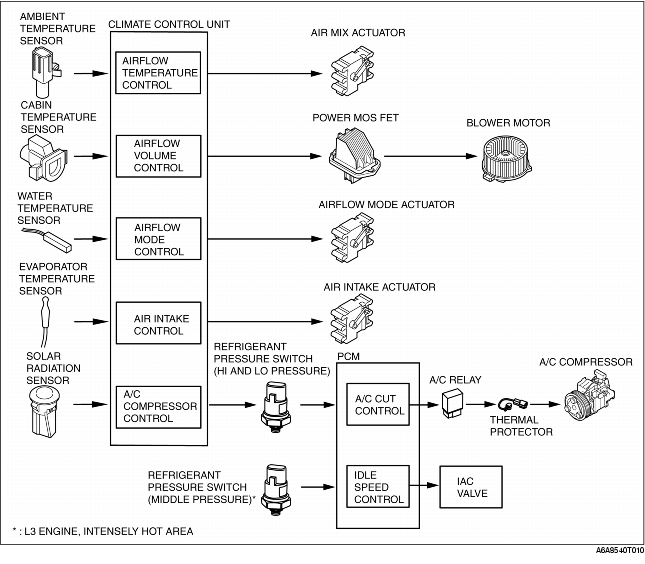

• The control system consists of input components (sensors), output components (actuators, magnetic clutch, power MOS FET, and other parts), and a control device (climate control unit).
