RESISTOR REMOVAL/INSTALLATION


id074000800700

1. Disconnect the negative battery cable.

2. Remove the glove compartment.

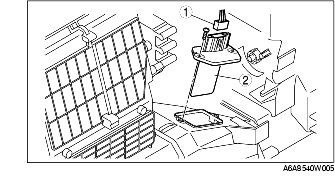

3. Remove in the order indicated in the table.

1
Resistor connector
2
Resistor

4. Install in the reverse order of removal.
