AIR INTAKE ACTUATOR REMOVAL/INSTALLATION


id074000801400

1. Disconnect the negative battery cable.

2. Remove the glove compartment.

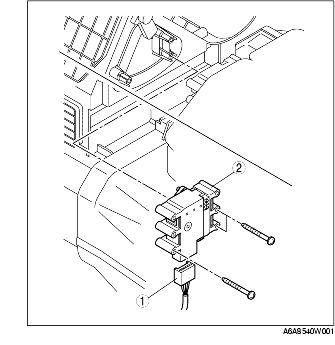

3. Remove in the order indicated in the table.

1
Air intake actuator connector
2
Air intake actuator

4. Install in the reverse order of removal.
