AIRFLOW MODE ACTUATOR INSPECTION

id074000801700

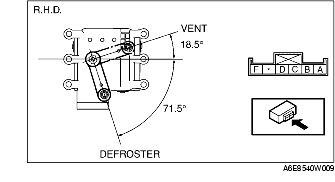

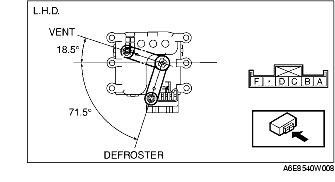

1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the airflow mode actuator.

2. Verify that the airflow mode actuator operates as shown below.

• If not as specified, replace the airflow mode actuator.

Connection

Movement

B+

GND

D
F
DEFROSTER → VENT
F
D
VENT → DEFROSTER

3. Verify that the resistance between the terminals of the airflow mode actuator is as shown in the graph.

• If not as specified, replace the airflow mode actuator.
