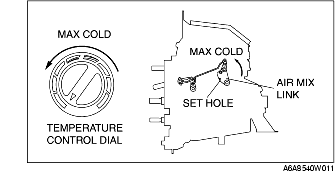

1. Set the temperature control dial to MAX COLD.
2. Set the air mix link to match MAX COLD in the direction shown by the arrow and insert a screwdriver at the set hole.
3. Connect the air mix wire to the air mix link.
4. Clamp the air mix wire to the wire clamp.
5. Verify that the temperature control dial moves the full range.

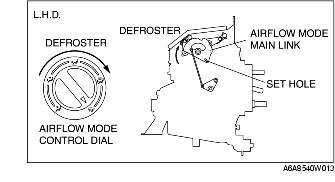

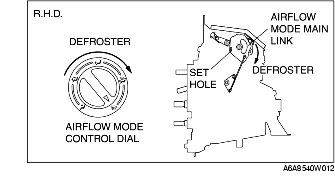

1. Set the airflow mode control dial to DEFROSTER.
2. Set the airflow mode main link to match DEFROSTER in the direction shown by the arrow and insert a screwdriver at the set hole.
3. Connect the airflow mode wire to airflow mode main link.
4. Clamp the airflow mode wire to wire clamp.
5. Verify that the airflow mode control dial moves the full range.
