REFRIGERANT PRESSURE SWITCH INSPECTION


id074000802700

1. Install the SST (gas charging set).

2. Disconnect the refrigerant pressure switch connector.

3. Verify the high-pressure side reading of the SST (manifold gauge) and continuity between the terminals of the refrigerant pressure switch.

• If not as specified, replace the refrigerant pressure switch.

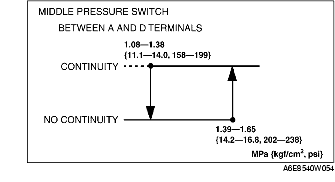

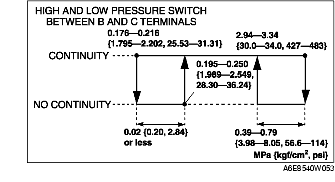

Triple-pressure Type

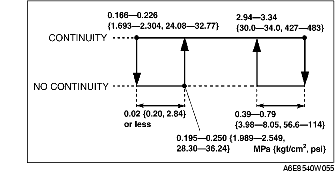

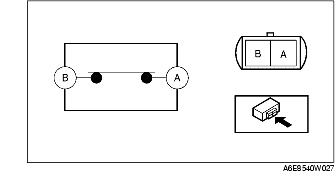

Dual-pressure Type
