WATER TEMPERATURE SENSOR INSPECTION

1. Measure the temperature around the water temperature sensor.

2. Measure the resistance between terminals of the water temperature sensor.

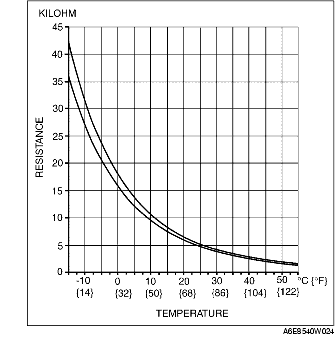

• If the resistance is not as shown in the graph, replace the water temperature sensor.
