DRIVER-SIDE AIR BAG MODULE CONSTRUCTION/OPERATION

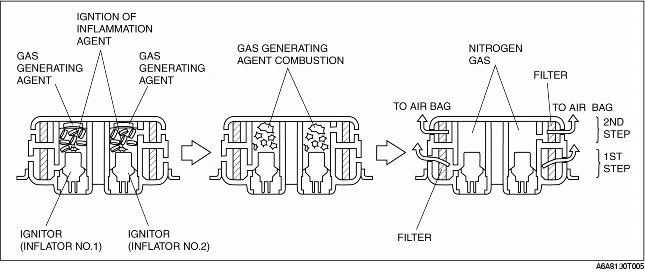

Inflator Operation

1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the SAS control module. The inflammation agent is ignited by the build up of heat of the igniter.

2. The ignition of the inflammation agent causes the combustion of an agent which releases nitrogen gas.

3. The nitrogen gas is cooled at the filter, and the filtrate is injected into the air bag.

Note

• The gas injection outlets for the inflators are divided into two tiers. Gas from inflator No.1 is injected from the No.1 tier, and from the No. 2 tier for inflator No. 2.
