INSPECTION OF SST (DEPLOYMENT TOOL)
id081000801000
• Use the SST (Deployment tool) to deploy a live (undeployed) air bag module or pre-tensioner seat belt before disposing of it.

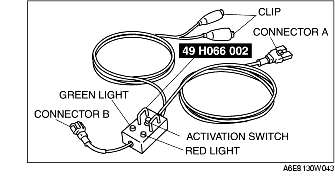

• Before using the SST (Deployment tool), inspect its operation.
Inspection Procedure
1. Follow the steps below to verify that the SST (Deployment tool) is operating correctly.
-
• If not as specified, do not use the SST (Deployment tool) because it may cause the air bag module or pre-tensioner seat belt to unexpectedly deploy upon connection to the air bag module or pre-tensioner seat belt.
|
Step
|
Inspection procedure
|
Light condition
|
|
Green
|
Red
|
|
1
|

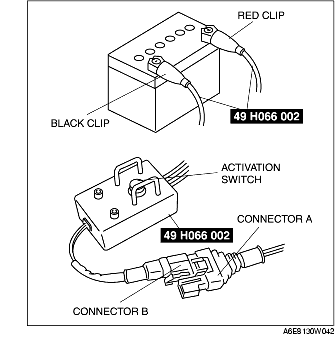

Connect red clip to positive battery terminal and black clip to negative battery terminal.
|
On
|
Off
|
|
2
|
Connect connectors A and B of SST (Deployment tool).
|
Off
|
On
|
|
3
|
Press activation switch.
|
On
|
Off
|
