CHILD RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id081100800100

4SD

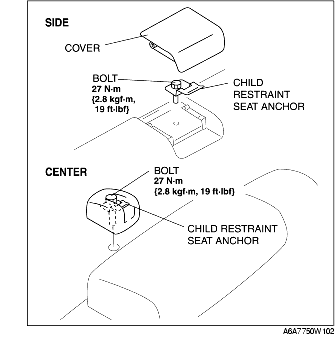

1. Remove the cover.

2. Remove the bolt and child restraint seat anchor.

3. Install in the reverse order of removal.

5HB

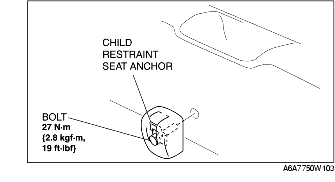

1. Remove the bolt and child restraint seat anchor.

2. Install in the reverse order of removal.

WGN

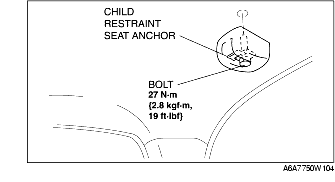

1. Remove the bolt and child restraint seat anchor.

2. Install in the reverse order of removal.
