FRONT BUCKLE REMOVAL/INSTALLATION

id081100800400

1. Perform the following procedure for vehicles with seat belt warning.

(1) Disconnect the negative battery cable.

(2) Remove the front seat.

(3) Disconnect the buckle switch connector.

2. Perform the following procedure for vehicles without seat belt warning.

(1) Remove the console.

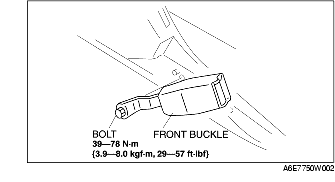

3. Remove bolt.

4. Install in the reverse order of removal.
