SECURITY LIGHT: DTC 11 (WDS OR EQUIVALENT: DTC B1681)


id0902e4632100

DTC 11 (B1681)

Coil signal is not received.

POSSIBLE CAUSE

• Defective wiring harness
• Defective coil
• Defective PCM

Diagnostic procedure

STEP

INSPECTION

ACTION

1
INSPECT POWER SUPPLY CIRCUIT OF COIL
• Disconnect coil connector.
• Turn ignition switch to ON position.

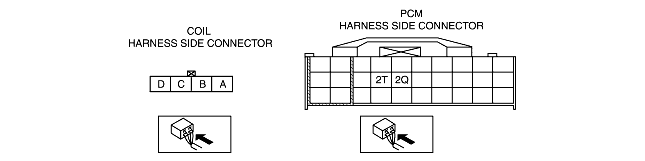

• Measure voltage at terminal D of coil connector.
• Is voltage more than 8 V?
Yes
Go to next step.
No
Repair wiring harness.
2
INSPECT WIRING HARNESS BETWEEN COIL AND GROUND
• Turn ignition switch to LOCK position.
• Inspect wiring harness between coil connector terminal C and ground for following.
- Short to power supply
- Open circuit
• Is wiring harness okay?
Yes
Go to next step.
No
Repair wiring harness.
3
INSPECT COIL INPUT SIGNAL CIRCUIT
• Connect coil connector.
• Turn ignition switch to ON position.
• Measure voltage at terminal B of coil connector.
• Is voltage more than 8 V?
Yes
Go to Step 7.
No
Go to next step.
4
INSPECT COIL INPUT SIGNAL CIRCUIT
• Turn ignition switch to LOCK position.
• Disconnect PCM connector.
• Turn ignition switch to ON position.
• Measure voltage at terminal 2T of PCM connector.
• Is voltage more than 8 V?
Yes
Replace PCM and reprogram immobilizer system.
No
Go to next step.
5
INSPECT COMMUNICATION CIRCUIT (INPUT) FOR CONTINUITY
• Turn ignition switch to LOCK position.
• Disconnect coil and PCM connectors.
• Is there continuity between coil connector terminal B and PCM connector terminal 2T?
Yes
Go to next step.
No
Repair wiring harness.
6
INSPECT COIL INPUT SIGNAL CIRCUIT
• Measure resistance between coil connector terminal B and ground.
• Is resistance more than 10 kilohms?
Yes
Replace coil.
No
Repair wiring harness.
7
INSPECT COIL OUTPUT SIGNAL CIRCUIT
• Connect coil and PCM connectors.
• Turn ignition switch to ON position.
• Measure voltage at terminal A of coil connector.
• Is voltage more than 8 V?
Yes
Replace coil.
No
Go to next step.
8
INSPECT COIL OUTPUT SIGNAL CIRCUIT
• Turn ignition switch to LOCK position.
• Disconnect coil connector.
• Turn ignition switch to ON position.
• Measure voltage at terminal A of coil connector.
• Is voltage more than 8 V?
Yes
Replace coil.
No
Go to next step.
9
INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY
• Turn ignition switch to LOCK position.
• Disconnect PCM connector.
• Is there continuity between coil connector terminal A and PCM connector terminal 2Q?
Yes
Go to next step.
No
Repair wiring harness.
10
INSPECT COIL OUTPUT SIGNAL CIRCUIT
• Measure resistance between PCM connector terminal 2Q and ground.
• Is resistance more than 10 kilohms?
Yes
Replace PCM and reprogram immobilizer system.
No
Repair wiring harness.
