• In case the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules, using the SST (WDS or equivalent) to determine the malfunctioning system.
- PCM
- DSC HU/CM (with DSC)
- ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS)
- Instrument cluster

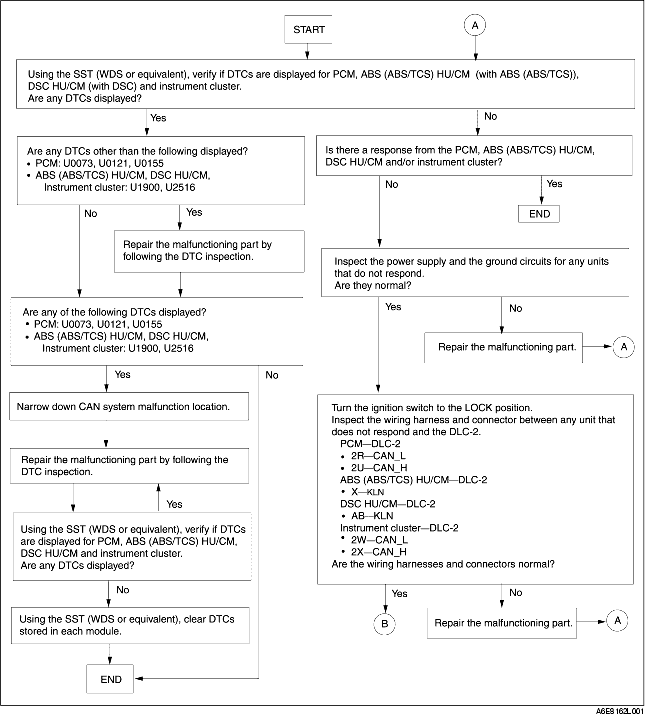

Flowchart
• Use the following flowchart to verify the cause of the trouble.
