DTC CLEARING PROCEDURE

id0902f6841000

1. Start the on-board diagnostic test mode.

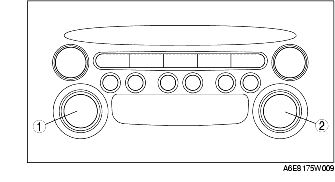

2. First press the POWER button, then simultaneously press AUDIO CONT button for 2 seconds or more.


1	POWER button (With RDS)
	AUDIO CONT button (Without RDS)
2	AUDIO CONT button (With RDS)
	POWER button (Without RDS)

Caution

• Before clearing the DTCs, be sure to enter all of them displayed in the on-board diagnostic test mode in the Audio Repair Order Form.

3. To stop the on-board diagnostic test mode, turn the ignition switch to the LOCK position.
