SHROUD PANEL REMOVAL/INSTALLATION

id091000406300

1. Remove the bonnet. (See BONNET REMOVAL/INSTALLATION.)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4. Remove the front bumper reinforcement. (See BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

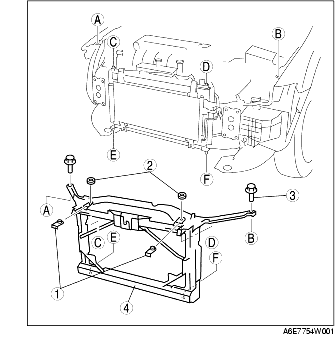

5. Remove in the order indicated in the table.

1
Radiator mount cover
2
Radiator mount rubber
3
Bolt
4
Shroud panel

6. Install in the reverse order of removal.
