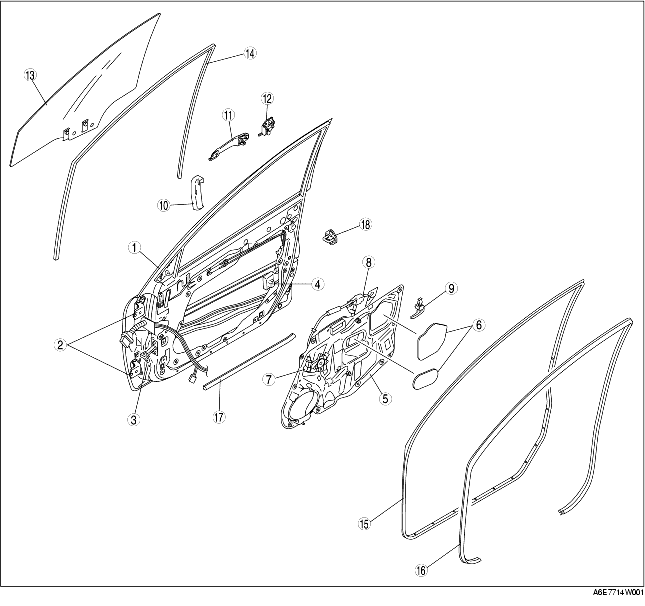

FRONT DOOR STRUCTURAL VIEW
id091100631300
1
Front door
2
Front door hinge
3
Checker
4
Front door latch and lock actuator
5
Front door unit
6
Hole cover
7
Power window motor
8
Power window regulator
9
Inner handle
10
Protector
11
Outer handle
12
Front door key cylinder
13
Front door glass
14
Glass run channel
15
Front door weatherstrip A
16
Front door lower weatherstrip
17
Front door weatherstrip B
18
Striker
