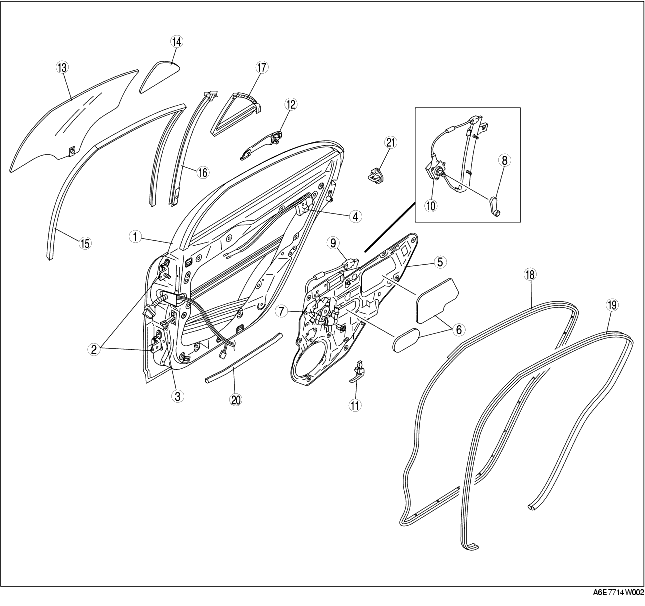

REAR DOOR STRUCTURAL VIEW
id091100631400
1
Rear door
2
Rear door hinge
3
Checker
4
Rear door latch and lock actuator
5
Rear door unit
6
Hole cover
7
Power window motor
8
Regulator handle
9
Power window regulator
10
Manual window regulator
11
Inner handle
12
Outer handle
13
Rear door glass
14
Quarter window glass
15
Glass run channel
16
Glass guide
17
Quarter window molding
18
Rear door weatherstrip A
19
Rear door lower weatherstrip
20
Rear door weatherstrip B
21
Striker
