DOOR ADJUSTMENT

1. Measure the gap and height between the front or rear door and the body.

2. If not as specified, loosen the front or rear door hinge installation bolts or the door lock striker installation screws, and reposition the door.

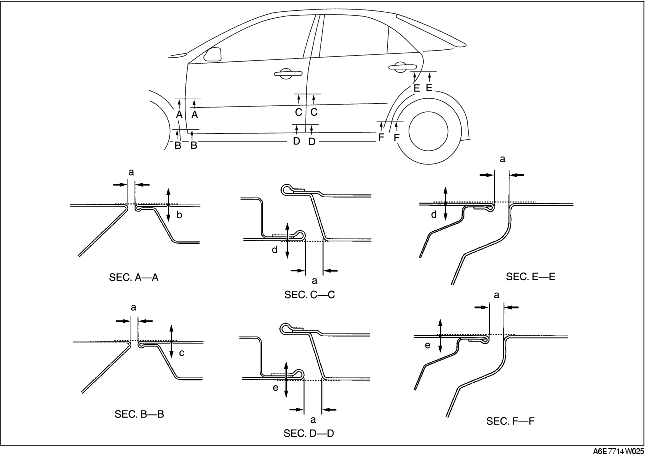

Clearance

a: 2.5-4.5 mm {0.10-0.18 in}

b: -0.8-1.2 mm {-0.03-0.05 in}

c: -0.3-1.7 mm {-0.01-0.07 in}

d: -1.0-1.0 mm {-0.04-0.04 in}

e: -0.5-1.5 mm {-0.02-0.06 in}

3. Tighten the bolts or screws.
