1. Disconnect the negative battery cable.
2. Remove the liftgate upper trim.
3. Disconnect the rear washer hose. (WGN)
4. Press the liftgate harness connector's bracket, which is attached to the liftgate, to the (1) direction shown in the figure, and then detach the fit. Then remove the connector toward the (2) direction shown in the figure. (5HB)
5. Disconnect the vehicle harness connector and the liftgate connector. Then remove the grommet from the liftgate. (5HB)
6. Disconnect the vehicle harness and the vehicle harness connector, attached to the liftgate, from the liftgate harness connector. (WGN)

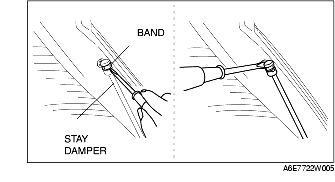

7. Pry away the stay damper's band with a screwdriver.
8. Pry out the connecting part of the stay damper and the hinge with a screwdriver to disconnect them. Then remove the stay damper.

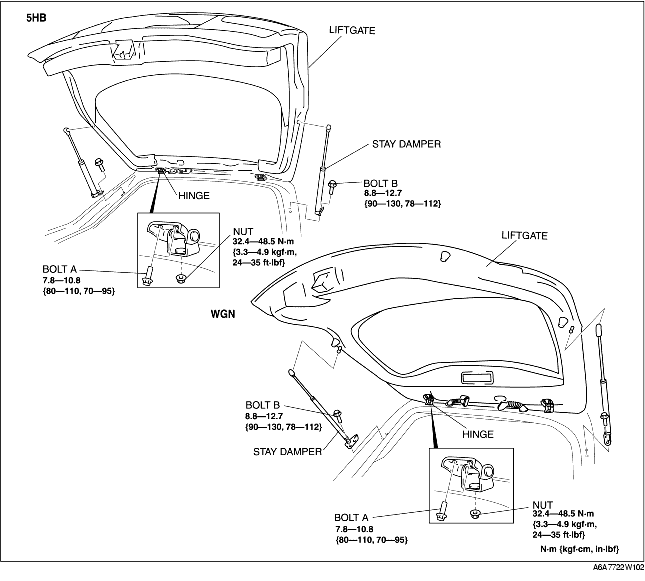

9. Remove the bolts A, then remove the liftgate.
10. To remove the hinge, remove the headliner and the nut.
11. To remove the stay damper, remove the bolt B.
12. Install in the reverse order of removal.
