POWER OUTSIDE MIRROR INSPECTION

id091200807600

1. Disconnect the power outside mirror connector.

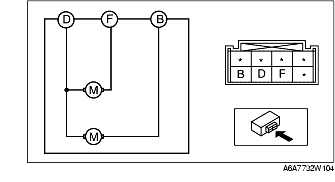

2. Apply battery positive voltage to the power outside mirror terminals and inspect the operation of the power outside mirror.

• If not as specified, replace the power outside mirror.

Mirror operation

Terminal

B+

GND

Up
B
D
Down
D
B
Left
F
D
Right
D
F
