REAR SEAT DISASSEMBLY/ASSEMBLY
id091300800500

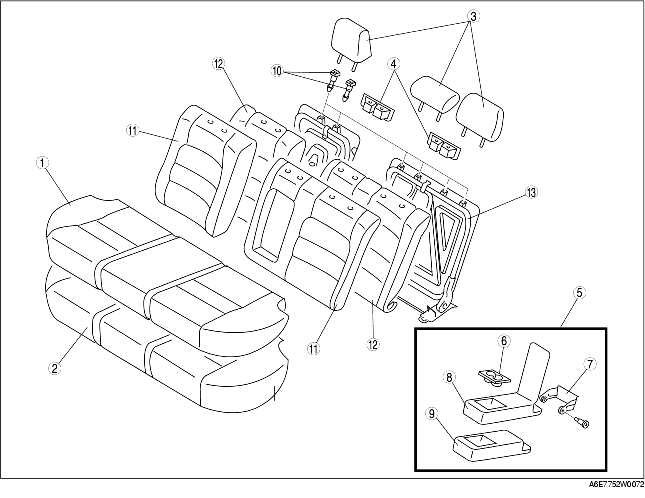

4SD
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Seat cushion trim
|
|
2
|
Seat cushion pad
|
|
3
|
Headrest
|
|
4
|
Striker cover
|
|
5
|
Armrest assembly
|
|
6
|
Cup holder
|
|
7
|
Armrest hinge
|
|
8
|
Armrest trim
|
|
9
|
Armrest pad
|
|
10
|
Pole guide
|
|
11
|
Seat back trim
|
|
12
|
Seat back pad
|
|
13
|
Seat back frame
|
5HB, WGN
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Headrest
|
|
2
|
Hinge cover
|
|
3
|
Seat cushion trim
|
|
4
|
Seat cushion pad
|
|
5
|
Seat cushion frame
|
|
6
|
Remote button cover
|
|
7
|
Seat back catch cover
|
|
8
|
Child seat anchor cover
|
|
9
|
Retainer bar anchor (WGN)
|
|
10
|
Seat back board
|
|
11
|
Pole guide
|
|
12
|
Remote button
|
|
13
|
Armrest assembly
|
|
14
|
Cup holder
|
|
15
|
Armrest hinge
|
|
16
|
Armrest trim
|
|
17
|
Armrest pad
|
|
18
|
Seat back trim
|
|
19
|
Seat back pad
|
|
20
|
Seat belt guide
|
|
21
|
Retractor cover
|
|
22
|
Rear seat belt
|
|
23
|
Seat back latch
|
|
24
|
Remote wire
|
|
25
|
Seat back frame
|
