REAR TILT MOTOR INSPECTION
id091300800800
1. Disconnect the rear tilt motor connector.

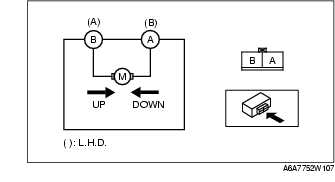

2. Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
-
• If not as specified, replace the rear tilt motor.
|
Motor operation
|
Connection
|
|
B+
|
GND
|
|
Up
|
B
(A)
|
A
(B)
|
|
Down
|
A
(B)
|
B
(A)
|
-
( ) :
L.H.D.
