SLIDE MOTOR INSPECTION
id091300800900
1. Disconnect the slide motor connector.

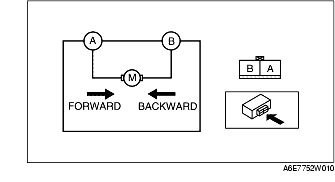

2. Inspect the slide motor operation when B+ is applied to the terminals as shown.
-
• If not as specified, replace the seat cushion frame.
|
Motor operation
|
Connection
|
|
B+
|
GND
|
|
Forward
|
A
|
B
|
|
Backward
|
B
|
A
|
