RECLINER MOTOR INSPECTION
id091300801000
1. Disconnect the recliner motor connector.

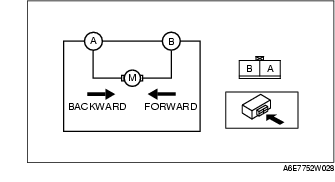

2. Inspect the recliner motor operation when B+ is applied to the terminal as shown.
-
• If not as specified, replace the recliner motor.
|
Motor operation
|
Connection
|
|
B+
|
GND
|
|
Forward
|
B
|
A
|
|
Backward
|
A
|
B
|
