EASY FOLD-DOWN FUNCTION OPERATION


id091300999400

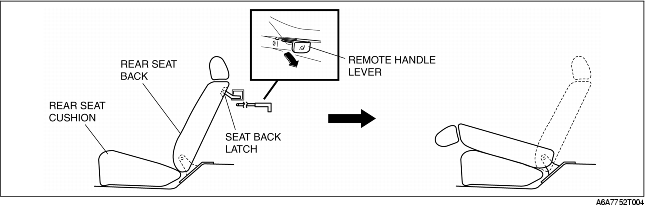

4SD

1. When the remote handle lever is operated, the seat back latch unlocks via the wire.

2. The unlocked seat back folds forward under its own weight.

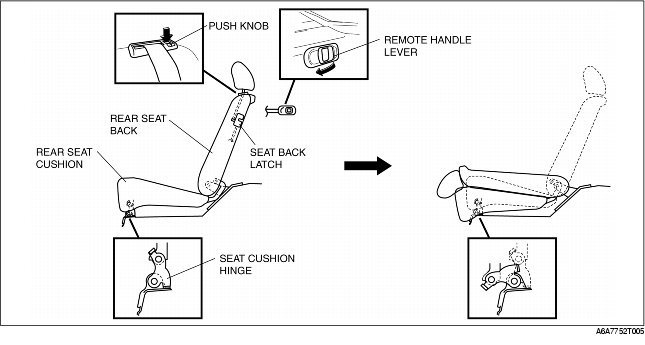

5HB, WGN

1. When the remote handle lever or push knob is operated, the seat back latch unlocks via the wire.

2. The unlocked seat back folds forward under its own weight.

3. Continuing to press the seat back down causes the seat cushion hinge to fold in and the seat back to slide forward into the lower recess.
