REAR DOOR LOCK ACTUATOR INSPECTION
id091400430700
Door Lock Actuator
1. Disconnect the rear door lock actuator connector.
2. Apply battery positive voltage to the rear door lock actuator terminals and inspect the operation of the rear door lock actuator.
-
• If not as specified, replace the rear door lock actuator.

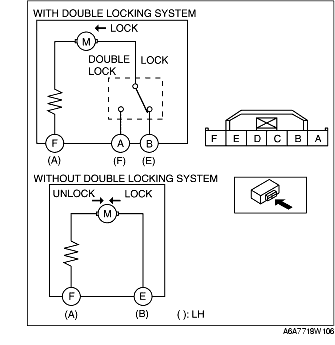

With double locking system
|
Connection
|
Actuator operation
|
|
B+
|
GND
|
|
B
(E)
|
F
(A)
|
Lock
|
|
A
(F)
|
F
(A)
|
Double lock
|
|
F
(A)
|
A and B
(F and E)
|
Unlock
|
-
( ) :
LH
Without double locking system
|
Actuator operation
|
Connection
|
|
B+
|
GND
|
|
Lock
|
E
(B)
|
F
(A)
|
|
Unlock
|
F
(A)
|
E
(B)
|
-
( ) :
LH
