LIFTGATE LOCK ACTUATOR OPERATION

id091400434700

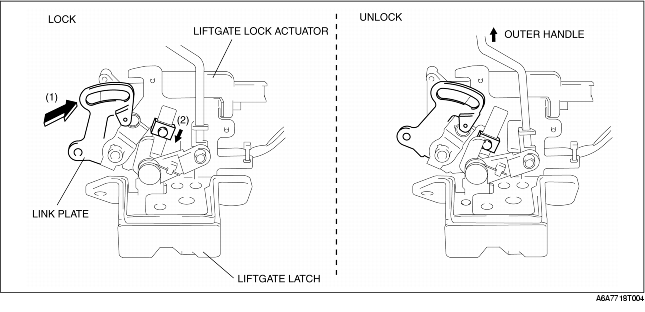

• The liftgate latch is switched from the lock to unlock position when the link plate is moved in the direction of arrow (2) after the link plate is pressed in the direction of arrow (1).
