TRUNK LID LOCK ACTUATOR INSPECTION

id091400447400

1. Disconnect the trunk lid lock actuator connector.

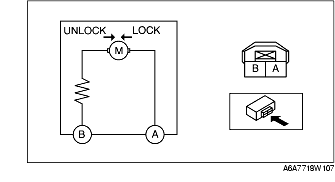

2. Apply battery positive voltage to the trunk lid lock actuator terminals and inspect the operation of the trunk lid lock actuator.

• If not as specified, replace the trunk lid lock.

Actuator operation

Connection

B+

GND

Lock
A
B
Unlock
B
A
