DOOR LOCK TIMER UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the glove compartment. (L.H.D.)

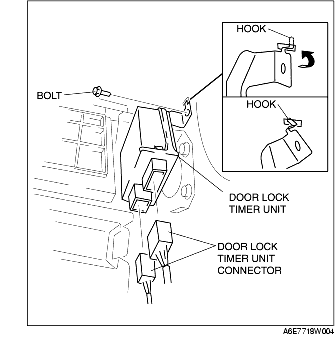

3. Remove the bolt.

4. While inclining the door lock timer unit along the body panel in the direction indicated by the arrow, disengage the bracket hook from the hole in the body panel.

5. Disconnect the door lock timer unit connector.

6. Remove the door lock timer unit.

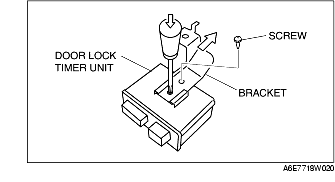

7. Remove the screw, then remove the bracket.

Note

• The screw which fixes the door lock timer unit and bracket is for a body ground connection. Be sure to secure the screw when installing.

8. Install in the reverse order of removal.
