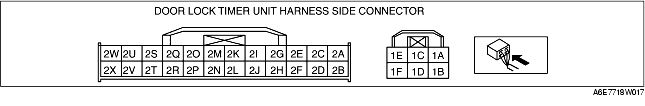

Terminal
|
Signal
|
Connected to
|
Test condition
|
Voltage (V)/Continuity
|
Action
|
|
1A
|
Power supply
|
D. LOCK 30 A fuse
|
Under any condition
|
B+
|
• Inspect D. LOCK 30 A fuse
• Inspect the vehicle battery
• Inspect related harness
|
|
1B
|
Room light control
|
• Front map light
• Rear map light
• Courtesy light
|
Any door is open
|
Below 1.0
|
• Inspect ROOM
15 A fuse
• Inspect door switch
• Inspect front map light
• Inspect rear map light
• Inspect courtesy light
• Inspect related harness
|
|
1C
|
Unlock output
|
• Door lock actuator
• Trunk lid lock actuator (4SD)
• Liftgate lock actuator
(5HB, WGN)
|
While lock actuator is unlocking
|
Below 1.0→B+→Below 1.0
|
• Inspect door lock actuator
• Inspect trunk lid lock actuator (4SD)
• Inspect liftgate lock actuator (5HB, WGN)
• Inspect D. LOCK 30 A fuse
• Inspect related harness
|
|
Other
|
Below 1.0
|
|
1D
|
Lock output
|
• Door lock actuator
• Trunk lid lock actuator (4SD)
• Liftgate lock actuator
(5HB, WGN)
|
While lock actuator is locking
|
Below 1.0→B+→Below 1.0
|
• Inspect door lock actuator
• Inspect trunk lid lock actuator (4SD)
• Inspect liftgate lock actuator (5HB, WGN)
• Inspect D. LOCK 30 A fuse
• Inspect related harness
|
|
Other
|
Below 1.0
|
|
1E
|
Power ground
|
GND
|
Under any condition: inspect for continuity to ground
|
Yes
|
• Inspect GND
|
|
1F*1
|
Double lock output
|
Door lock actuator
|
Door lock actuators are double locked
|
Below 1.0→B+→Below 1.0
|
• Inspect door lock actuator
• Inspect related harness
|
|
Other
|
Below 1.0
|
|
2A
|
Power supply
|
ROOM 15 A fuse
|
Under any condition
|
B+
|
• Inspect ROOM
15 A fuse
• Inspect related harness
|
|
2B
|
IG1
|
METER IG 15 A fuse
|
Ignition switch is at ON position
|
B+
|
• Inspect METER IG 15 A fuse
• Inspect related harness
|
|
Ignition switch is at LOCK or ACC position
|
Below 1.0
|
|
2C
|
-
|
-
|
-
|
-
|
-
|
|
2D
|
-
|
-
|
-
|
-
|
-
|
|
2E
|
-
|
-
|
-
|
-
|
-
|
|
2F
|
Key reminder switch
|
Key reminder switch
|
Key reminder switch at on
|
B+
|
• Inspect key reminder switch
• Inspect related harness
|
|
Other
|
Below 1.0
|
|
2G
|
Trunk lid (4SD), Liftgate (5HB, WGN)
open/closed
|
• Trunk compartment light switch (4SD)
• Cargo compartment light switch (5HB, WGN)
|
4SD
• Trunk lid is open
(trunk compartment light switch is on)
5HB, WGN
• Liftgate is open
(cargo compartment light switch is on)
|
Below 1.0
|
• Inspect trunk compartment light switch (4SD)
• Inspect cargo compartment light switch
(5HB, WGN)
• Inspect related harness
|
|
4SD
• Trunk lid are closed
(trunk compartment light switch are off)
5HB, WGN
• Liftgate are closed
(cargo compartment light switch are off)
|
B+
|
|
2H
|
-
|
-
|
-
|
-
|
-
|
|
2I
|
Hazard
|
Flasher unit
|
Transmitter LOCK button is pressed
|
B+→Below
1.0→B+
|
• Inspect flasher unit
• Inspect related harness
|
|
Transmitter UNLOCK button is pressed
|
B+→Below 1.0→B+→Below 1.0→B+
|
|
No transmitter buttons are pressed
|
B+
|
|
2J*1
|
Security light output
|
Instrument cluster
|
Double locking system operated
|
1.4
|
• Inspect instrument cluster
• Inspect related harness
|
|
Other
|
B+
|
|
2K
|
Door open/closed
|
Door switch
|
Any door is open
(any door switch is on)
|
Below 1.0
|
• Inspect door switches
• Inspect related harness
|
|
All door are closed
(door switches are off)
|
B+
|
|
2L
|
-
|
-
|
-
|
-
|
-
|
|
2N
|
-
|
-
|
-
|
-
|
-
|
|
2M
|
-
|
-
|
-
|
-
|
-
|
|
2O
|
-
|
-
|
-
|
-
|
-
|
|
2P
|
-
|
-
|
-
|
-
|
-
|
|
2Q
|
Lock input
|
Door lock-link switch
|
Driver's side door is locked: inspect for continuity to ground
|
Yes
|
• Inspect door lock-link switch
• Inspect related harness
|
|
Driver's side door is unlocked: inspect for continuity to ground
|
No
|
|
2R
|
Unlock input
|
Door lock-link switch
|
Driver's side door is locked: inspect for continuity to ground
|
No
|
• Inspect door lock-link switch
• Inspect related harness
|
|
Driver's side door is unlocked: inspect for continuity to ground
|
Yes
|
|
2S
|
Lock/Unlock input
|
• Door key cylinder switch (driver's side)*1
• Door key cylinder switch (passenger's side)
|
At the moment of key cylinder is locked
|
Approx. 2.5
|
• Inspect key cylinder switch
• Inspect related harness
|
|
At the moment of key cylinder is unlocked
|
Below 1.0
|
|
Key cylinder at neutral position
|
Approx. 5
|
|
2T
|
-
|
-
|
-
|
-
|
-
|
|
2U
|
-
|
-
|
-
|
-
|
-
|
|
2V
|
-
|
-
|
-
|
-
|
-
|
|
2W
|
Signal ground
|
GND
|
Under any condition: inspect for continuity to ground
|
Yes
|
• Inspect GND
|
|
2X
|
-
|
-
|
-
|
-
|
-
|
