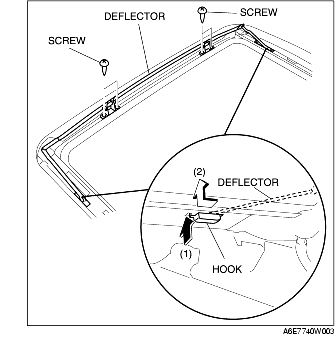

DEFLECTOR REMOVAL/INSTALLATION

1. Fully open the glass panel.

2. Remove the headliner.

3. Remove the screws.

4. Disengage the hooks.

(1) Press the rear end of each hook.

(2) After sliding the hooks rearward, press them upward.

5. Remove the deflector.

6. Install in the reverse order of removal.
