1. Remove the sunroof motor.

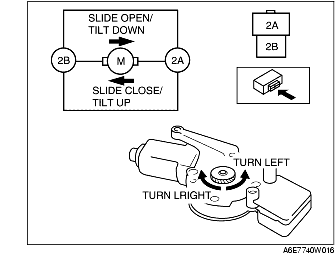

2. Apply battery positive voltage to the sunroof motor terminals and inspect the operation of the sunroof motor.
|
Connection
|
Motor operation
|
|
|---|---|---|
|
2A
|
2B
|
|
|
B+
|
GND
|
Turn left (Slide close/Tilt up)
|
|
GND
|
B+
|
Turn right (Slide open/Tilt down)
|
1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)
2. Verify the glass panel position.
3. Disconnect the connector.

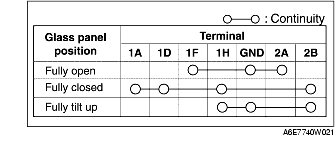

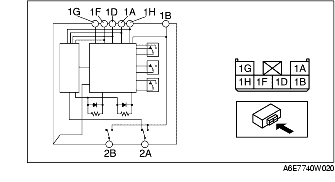

4. Inspect for continuity between the sunroof motor terminals using an ohmmeter.
