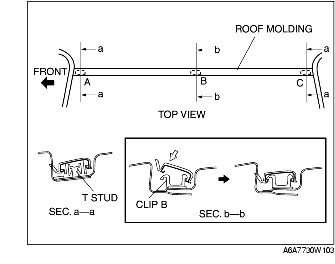

1. Attach the roof molding to the T stud at the A section.
2. Hook the roof molding to clip B, press it in, and attach the roof molding to clip B.
3. Attach the roof molding to the T stud at the C section.

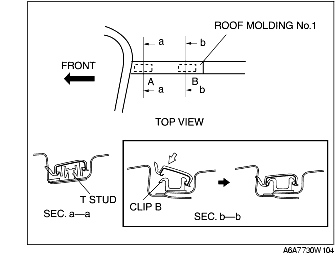

1. Attach the roof molding No.1 to the T stud at the A section.
2. Hook the roof molding No.1 to clip B at the B section, press it in, and attach the roof molding No.1 to clip B.

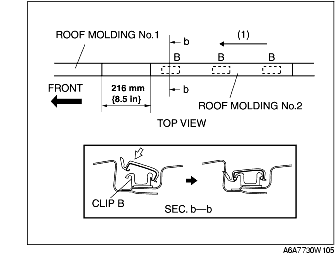

3. Align the front end-face of roof molding No.2 at a position 216 mm {8.5 in} from the rear end-face of roof molding No.1.
4. Press in roof molding No.2 along the direction (1) shown in the figure and attach it to clips B at the B section.

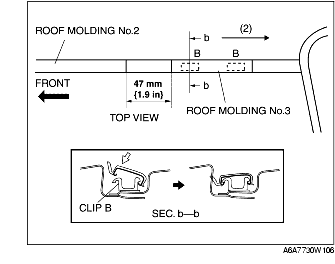

5. Align the front end-face of roof molding No.3 at a position 47 mm {1.9 in} from the rear end-face of roof molding No.2.
6. Press in roof molding No.3 along the direction (2) shown in the figure and attach it to clips B at the B section.
