EXTRACTOR CHAMBER REMOVAL/INSTALLATION


id091600449500

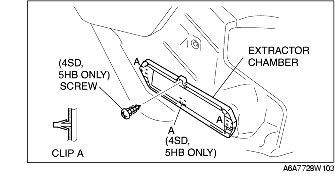

1. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

2. Remove the left side trunk side trim.

3. Remove the screw. (4SD, 5HB)

4. Squeeze the clips with your fingers and remove the extractor chamber from the vehicle side.

5. Install in the reverse order of removal.
