RADIATOR GRILLE REMOVAL/INSTALLATION


id091600449700

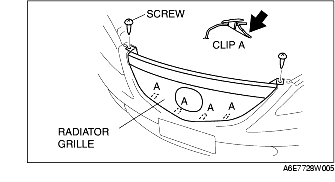

1. Remove the screws.

2. Press clip A in the direction of the arrow, pll the radiator grille outward and remove from the front bumper.

3. Install in the reverse order of removal.
