FRONT BELTLINE MOLDING INSTALLATION

1. Press the clip into the body.

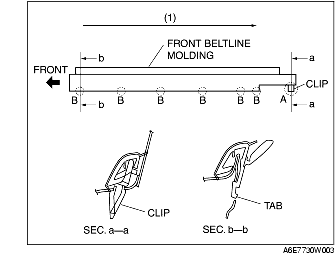

2. Press in the B section of the front beltline molding along the direction (1) shown in the figure to attach it to the body.

Note

• If the front beltline molding is difficult to attach, apply soapy water.
