FRONT SCUFF PLATE REMOVAL/INSTALLATION


id091700457900

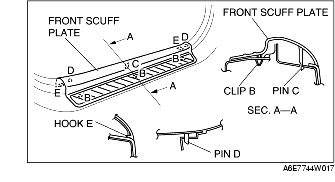

1. Pull the front scuff plate upward, then disengage clips B, pins C, D and hooks E from the body, and remove the front scuff plate.

2. Install in the reverse order of removal.
