REAR SCUFF PLATE REMOVAL/INSTALLATION


id091700458000

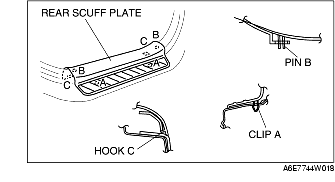

1. Pull the rear scuff plate upward, then disengage clips A, pin B, and hooks C from the body, and remove the rear scuff plate.

2. Install in the reverse order of removal.
