B-PILLAR LOWER TRIM REMOVAL/INSTALLATION


id091700458900

1. Remove the front scuff plate.

2. Remove the rear scuff plate.

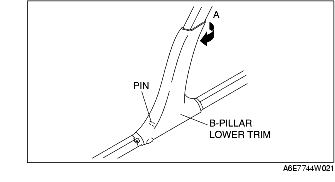

3. Pull the area marked A, then remove one side of the B-pillar lower trim.

4. Pull the B-pillar lower trim, then remove the pin from the body.

5. Remove the B-pillar lower trim.

6. Install in the reverse order of removal.
