B-PILLAR UPPER TRIM REMOVAL/INSTALLATION


id091700459000

1. Remove the upper anchor of the front seat belt.

2. Remove the B-pillar lower trim.

3. Turn the seaming welt over.

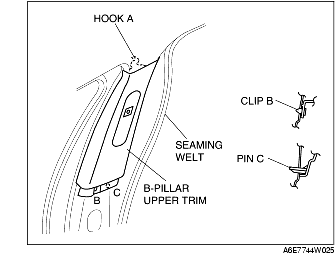

4. Pull the B-pillar upper trim toward you, then disengage, clip B, and pin C from the body.

5. Disengage hook A from the body, then remove B-pillar upper trim.

6. Install in the reverse order of removal.
