A-PILLAR TRIM REMOVAL


id091700459400

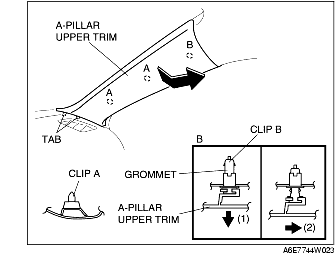

1. Turn the seaming welt over.

2. Disengage clips A using a fastener remover.

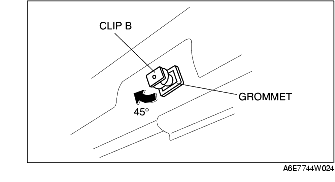

3. Pull the A-pillar trim, then disengage clip B (1).

4. Pull the A-pillar trim upward, then disengage clip B from the A-pillar trim (2).

5. Pull clip B out, then rotate 45° .

6. Remove clip B from the grommet by pulling it toward you.
