A-PILLAR TRIM INSTALLATION


id091700459500

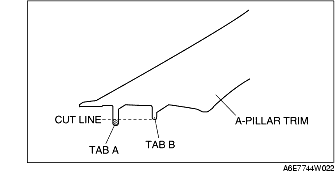

1. Cut A-pillar trim tab A to the same length as tab B.

2. Install clip B to the A-pillar trim.

3. Install the A-pillar trim by tapping the clip into the body.
