CENTER BOX REMOVAL/INSTALLATION


id091700800600

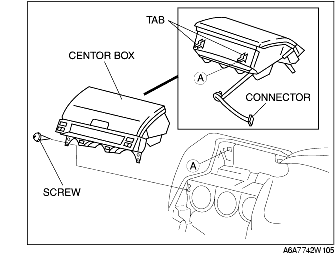

1. Disconnect the negative battery cable.

2. Remove the center panel module.

3. Remove the screws.

4. Pull the center box forward, then disengage the tabs.

5. Disconnect the LCD unit connector.

6. Install in the reverse order of removal.
