1. For MT vehicle, remove the shift lever knob.

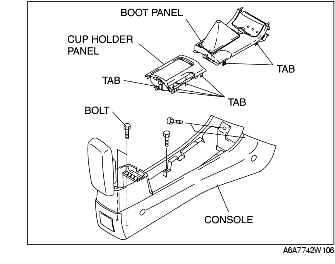

2. Remove the cup holder panel using a tape-wrapped screwdriver.
3. Remove the boot panel using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination.
4. Remove the bolts.
5. Install in the reverse order of removal.
