CONSOLE DISASSEMBLY/ASSEMBLY
id091700801300

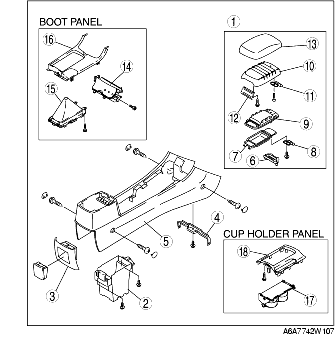

1. Disassemble in the order indicated in the table.
|
1
|
Console lid (only large console box)
|
|
2
|
Box
|
|
3
|
Rear ashtray case
|
|
4
|
Bracket
|
|
5
|
Console
|
|
6
|
Console cover
|
|
7
|
Box storage
|
|
8
|
Lock No.1
|
|
9
|
Inner console lid
|
|
10
|
Lid core
|
|
11
|
Lock No.2
|
|
12
|
Hinge
|
|
13
|
Outer console lid
|
|
14
|
Front ashtray
|
|
15
|
Boot
|
|
16
|
Boot panel
|
|
17
|
Cup holder
|
|
18
|
Cup holder panel
|
2. Assemble in the reverse order of disassembly.
