D-PILLAR TRIM REMOVAL/INSTALLATION


id091700802300

1. Remove the trunk side upper trim.

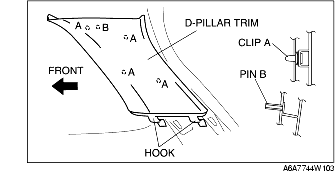

2. Pull the D-pillar trim forward, then disengage the clips A and pin B from the body.

3. Remove the hook from the body, then remove the D-pillar trim.

4. Install in the reverse order of removal.
