1. Remove the liftgate upper trim.

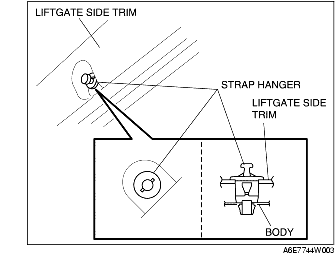

2. Position the strap hanger as shown in the figure.

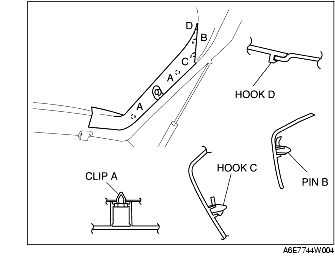

3. Pull the liftgate side trim toward you, then disengage clips A, pin B and the strap hanger from the body and pin B, hook C, D from the liftgate lower trim.
4. Remove the liftgate side trim.
5. Remove the hanger strap from the liftgate side trim.
6. Install in the reverse order of removal.
1. Remove the liftgate upper trim.

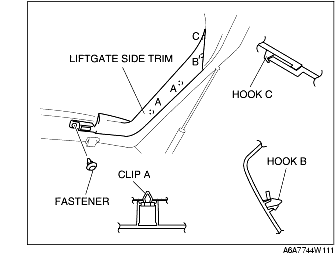

2. Remove the fastener.
3. Pull the liftgate side trim toward you, then disengage the clips A and hook B, C from the body.
4. Remove the liftgate side trim.
5. Install in the reverse order of removal.
